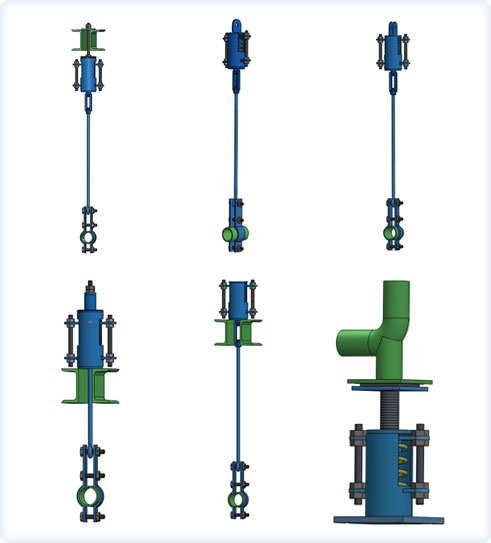

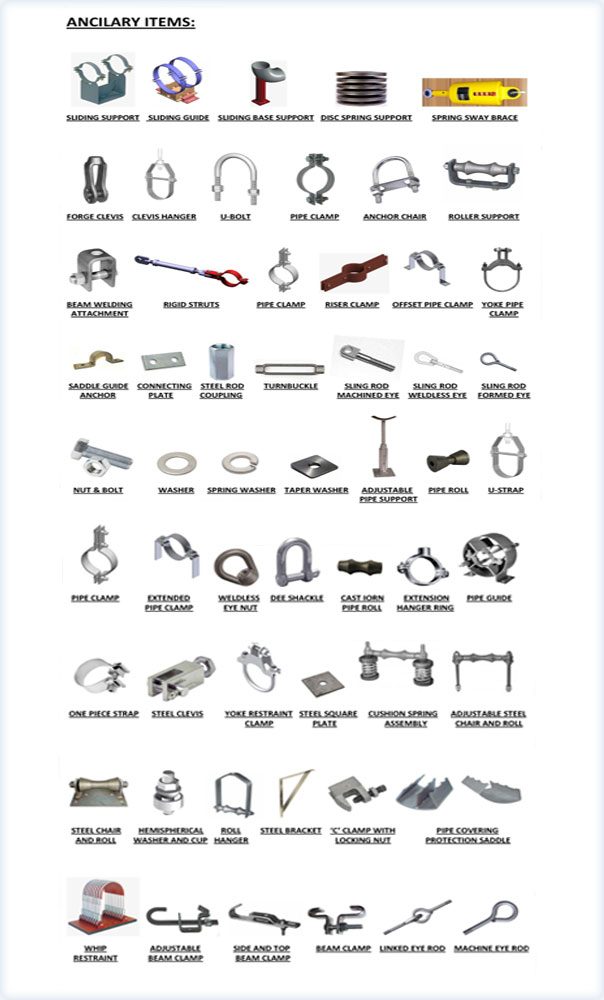

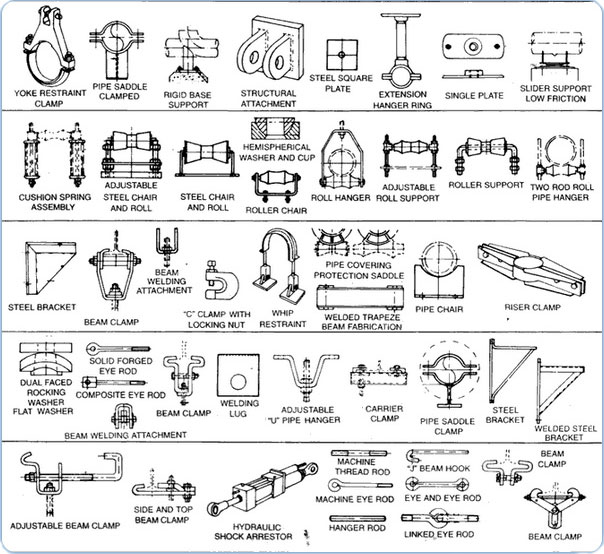

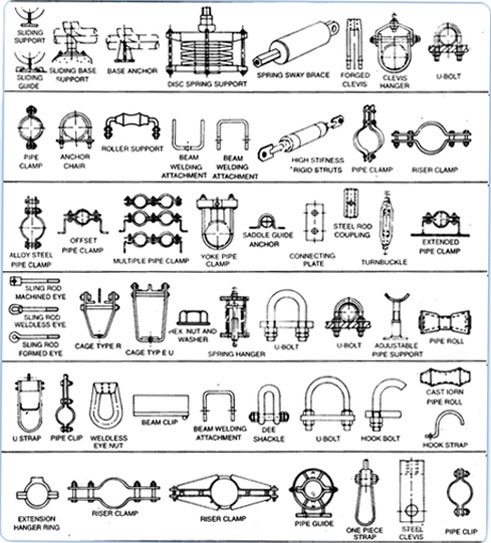

Hasan-Techno Industry manufactures a comprehensive range of standardized ancillary pipe components designed to interconnect spring supports, structural steel, and piping.
Two-bolt pipe clamps, three-bolt alloy steel high temperature pipe clamps, riser clamps, pipe saddles, and insulated pipe clamps manufactured per MSS SP-58 Types 1, 3, 4, 8.
Forged eye rods, continuous threaded rods, weldless eye nuts, drop forged turnbuckles (MSS SP-58 Type 13), extension pieces, and clevises engineered for high tensile load capacities.
Welded beam attachments (MSS SP-58 Type 22), heavy duty beam clamps (Type 28/30), structural steel lugs, bracket attachments, and ceiling plates.
Pipe roller chairs, roller stands, adjustable pipe roller hangers, and guide rollers for thermal axial pipe expansion movement.
Heavy duty disc springs and Belleville spring stacks engineered for shock load absorption, bolt tension maintenance, and thermal load compensation.
Custom pipe whip restraints, sway braces, spring base plates, guide frames, and welded structural steel assemblies fabricated strictly to client drawings.
| Component | Standard Material | High Temp Material | MSS SP-58 Type |
|---|---|---|---|
| Standard Pipe Clamp | IS 2062 Gr.B / ASTM A36 | ASTM A387 Gr.11 / Gr.22 | Type 4 / Type 8 |
| 3-Bolt Heavy Clamp | IS 2062 Gr.B | ASTM A387 Gr.22 / Gr.91 | Type 3 |
| Turnbuckle | Forged Carbon Steel (IS 2004) | Alloy Steel (ASTM A193 B7) | Type 13 |
| Welded Beam Attachment | IS 2062 Gr.B | ASTM A387 | Type 22 |
| U-Bolt Assembly | IS 2062 Gr.B / Stainless Steel | Alloy Steel B7 | Type 24 |
